YOKOGAWA BT200 Brain Terminal
Japan original products
Provide certificate of origin

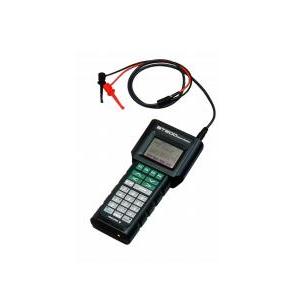

YOKOGAWA BT200 Brain Terminal
The BT200 is a handheld device that is used to enter, change, display, diagnose and print out configuration or calibration information for Brain communication equipments and field instruments.
Specifications
The BT200 BRAIN Terminal is used to set, change, display and print out parameters such as tag numbers, output mode, and range for equipment that use BRAIN communications. This handheld terminal also monitors I/O values and self-check results, sets constant-current output, and allows zero adjustments. To perform these functions, it must be connected to the equipment’s 4 to 20mA DC signal transmission lines or to a dedicated connector on the ESC (Signal Conditioner Communication Card) when the system is started up or maintained
| - | Online non-interruptive (transparent) communication |
| The modulated communication signal does not interrupt the 4 to 20 mA DC signals on the communications loop. This loop functions automatically while the terminal is online. | |
| - | Diagnostics/ security with error messages |
| In addition to the terminal’s self-check functions, there is a code entry function that helps maintain the integrity of important setup data. | |
| - | Built-in thermal printer |
| This option enables on-the-spot printouts of tag numbers, calibrations, configurations, and more. Customers will appreciate the ability to print out quality assurance and ISO 9000 documentation. |
Functional Specifications
Basic Functions:
communication.
: constant current output
: Zero point adjustment
Additional Functions:
Security code entry is required to alter setpoints.
An alarm message appearing on the LCD announces
low battery voltages.
The terminal is switched off automatically if no key
access is made for approximately 5 minutes.
Printout Information
